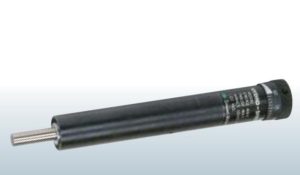

Hydro Speed Regulators (1)
Hydro speed regulators are designed to control the forward speed (feed rate) of the Selfeeder. Use of a regulator provides adjustable feed rates, faster cycle times, reduces burring, eliminates drill breakage, and prevents sudden forward surges at drill breakthrough. One regulator is required per Selfeeder for drilling operations.
Special stroke length regulators are available.
Clamping Components (7)
The universal stand is a jig for fixing a round-body type Selfeeder at a desired angle of operation.
Level Clamp is a jig for installating a round-body type selfeeder electric parallel with the machine base. According to the difference of the center height, 2 types are provided.
To use a Selfeeder or Synchro-tapper universally, Standrill is a highly precise automatic drilling stand equipped with the up-down height adjustable function and head swing mechanism for flexible use
Measures must be taken to prevent the wear and fracture of the drill in such machining processes.
Step-feed maching is the most effective way of preventing such problems.
Operate-Signal Kit (1)
Sequence control by trip switch. The trip switch is a means of supplying an electrical signal to trigger operation of other associated machines. The trip switch unit is a standard attachment, but optional. It is a simple matter to make a converter circuit in which the electrical signal will trigger a pneumatic operation.
