• 1/3 HP spindle motor
  • 1700-12,000 fixed rpm spindle speed range
  • Maximum drilling capacity in mild steel is 7/32 in. (5.5 mm)
  • Maximum drilling capacity in cast iron is 1/4 in. (6.5 mm)
  • Maximum drilling capacity in aluminum is 5/16 in. (9 mm)
  • Standard stroke of 3.15 in. (80 mm)

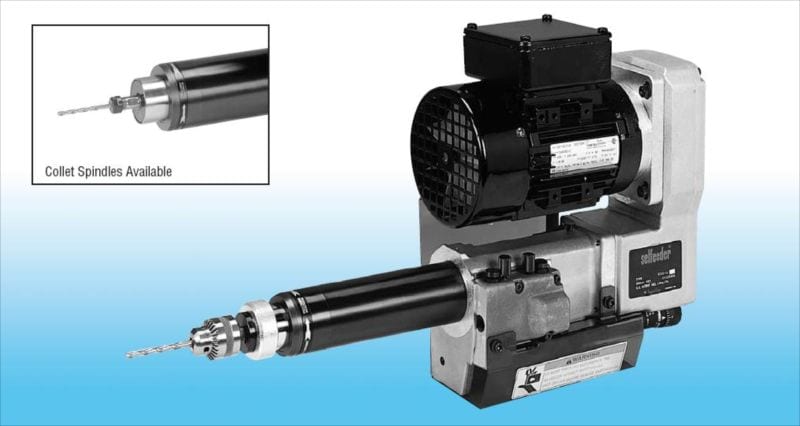

  • Standard JT1 type spindle for drill or collet chucks with integral collet and special spindles available as options
SKU: N/A Categories: , ,
Model #Spindle RPM (no load) Aluminum Drill SizeCast Iron Drill SizeMild Steel Drill SizeTheoretical Spindle TorqueThrustList Price
ES2-2-3100U12000 [330-056 + 330-049]3/32 in 2.5 mm3/64 in 1 mm 3/64 in 1 mm0.14 ft.lbs 0.19 N·m 60 kg 132 lbsQUOTE
ES2-2-3085U100001/8 in 3 mm3/64 in 1 mm3/64 in 1 mm0.17 ft.lbs 0.23 N·m60 kg 132 lbsQUOTE
ES2-2-3060U72005/32 in 4 mm1/16 in 1.5 mm 1/16 in 1.5 mm0.24 ft.lbs 0.33 N·m60 kg 132 lbsQUOTE
ES2-2-6045U5400 7/32 in 5.5 mm5/64 in 5/64 in 2 mm0.32 ft.lbs 0.43 N·m60 kg 132 lbsQUOTE
ES2-2-6030U360017/64 in 6.5 mm1/8 in 3 mm3/32 in 2.5 mm0.48 ft.lbs 0.65 N·m60 kg 132 lbsQUOTE
ES2-2-6020U240019/64 in 7.5 mm11/64 in 4.5 mm11/64 in 4.5 mm0.72 ft.lbs 0.98 N·m60 kg 132 lbsQUOTE
ES2-2-6014U17005/16 in 8 mm1/4 in 6.5 mm7/32 in 5.5 mm1.02 ft.lbs 1.38 N·m60 kg 132 lbsQUOTE
