• 3/4, 1, or 1.5 HP spindle motors
  • 480-7300 fixed rpm spindle speed range
  • Maximum drilling capacity in steel is 33/64 in.(13 mm)
  • Maximum drilling capacity in cast iron 19/32 in.(15 mm)
  • Maximum drilling capacity in aluminum 43/64 in. (17 mm)
  • Standard stroke of 3.94 in. (100 mm)

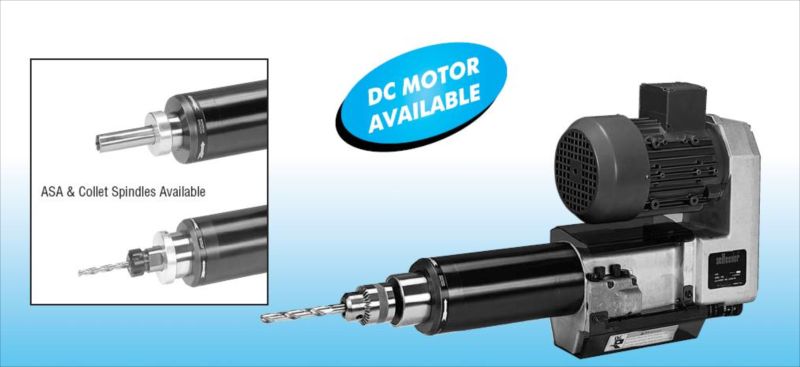

  • Standard JT33 type spindle for drill or collet chucks with integral collet, ASA and KH quick change, and special spindles available as options
SKU: N/A Categories: , ,
Model #Spindle RPM (no load)Aluminum Drill SizeCast Iron Drill SizeMild Steel Drill SizeTheoretical Spindle TorqueThrustList Price
ES5-2-6061U73005/32 in 4 mm 1/16 in 1.5 mm 1/16 in 1.5 mm 1.08 ft.lbs 1.46 N·m244 kg 539 lbsQUOTE
ES5-2-6052U620011/64 in 5 mm1/16 in 1.5 mm1/16 in 1.5 mm1.27 ft.lbs 1.72 N·m244 kg 539 lbsQUOTE
ES5-2-6045U54007/32 in 5.5 mm5/64 in 2 mm5/64 in 2 mm1.46 ft.lbs 1.98 N·m244 kg 539 lbsQUOTE
ES5-2-1338U46001/4 in 6.5 mm 3/32 in 2.5 mm 3/32 in 2.5 mm1.71 ft.lbs 2.32 N·m244 kg 539 lbsQUOTE
ES5-2-1330U360011/32 in 8.5 mm 1/8 in 3 mm1/8 in 3 mm 2.19 ft.lbs 2.97 N·m244 kg 539 lbsQUOTE
ES5-2-1323U28007/16 in 11 mm 5/32 in 4 mm5/32 in 4 mm2.81 ft.lbs 3.81 N·m 244 kg 539 lbsQUOTE
ES5-2-1320U2400 15/32 in 12 mm11/64 in 4.5 mm11/64 in 4.5 mm3.28 ft.lbs 4.45 N·m 244 kg 539 lbsQUOTE
ES5-2-1317U210033/64 in 13 mm 13/64 in 5 mm13/64 in 5 mm3.75 ft.lbs 5.09 N·m244 kg 539 lbsQUOTE
ES5-2-1314U1700 35/64 in 14 mm1/4 in 6.5 mm1/4 in 6.5 mm4.63 ft.lbs 6.28 N·m244 kg 539 lbsQUOTE
ES5-2-1312U140019/32 in 15 mm5/16 in 8 mm 5/16 in 8 mm5.63 ft.lbs 7.63 N·m244 kg 539 lbsQUOTE
ES5-4-1330U360011/32 in 8.5 mm1/8 in 3 mm1/8 in 3 mm1.46 ft.lbs 1.98 N·m244 kg 539 lbsQUOTE
ES5-4-1326U3100 3/8 in 9.5 mm9/64 in 3.5 mm9/64 in 3.5 mm 1.69 ft.lbs 2.29 N·m 244 kg 539 lbsQUOTE
ES5-4-1322U2700 27/64 in 10.5 mm5/32 in 4 mm5/32 in 4 mm1.95 ft.lbs 2.64 N·m244 kg 539 lbsQUOTE
ES5-4-1319U23007/16 in 11 mm11/64 in 4.5 mm 11/64 in 4.5 mm2.28 ft.lbs 3.09 N·m244 kg 539 lbsQUOTE
ES5-4-1315U18001/2 in 12.5 mm15/64 in 6 mm15/64 in 6 mm2.92 ft.lbs 3.96 N·m244 kg 539 lbsQUOTE
ES5-4-1311U140033/64 in 13 mm5/16 in 8 mm 5/16 in 8 mm 3.75 ft.lbs 5.09 N·m244 kg 539 lbsQUOTE
ES5-4-1310U1200 35/64 in 14 mm 23/64 in 9 mm23/64 in 9 mm4.38 ft.lbs 5.94 N·m244 kg 539 lbsQUOTE
ES5-4-1308U1000 19/32 in 15 mm 7/16 in 11 mm 7/16 in 11 mm5.25 ft.lbs 7.12 N·m 244 kg 539 lbsQUOTE
ES5-4-1307U8505/8 in 16 mm33/64 in 13 mm 29/64 in 13 mm6.18 ft.lbs 8.38 N·m244 kg 539 lbsQUOTE
ES5-4-1306U70043/64 in 17 mm 35/64 in 14 mm29/64 in 11.5 mm7.50 ft.lbs 10.17 N·m244 kg 539 lbsQUOTE
ES5-6-1320U24003/8 in 9.5 mm11/64 in 4.5 mm11/64 in 4.5 mm1.64 ft.lbs 2.22 N·m244 kg 539 lbsQUOTE
ES5-6-1317U210025/64 in 10 mm13/64 in 5 mm13/64 in 5 mm1.88 ft.lbs 2.54 N·m244 kg 539 lbsQUOTE
ES5-6-1315U1800 27/64 in 10.5 mm15/64 in 6 mm15/64 in 6 mm2.19 ft.lbs 2.97 N·m 244 kg 539 lbsQUOTE
ES5-6-1313U1500 29/64 in 11.5 mm9/32 in 7 mm9/32 in 7 mm 2.63 ft.lbs 3.57 N·m244 kg 539 lbsQUOTE
ES5-6-1310U1200 33/64 in 13 mm23/64 in 9 mm 23/64 in 9 mm 3.28 ft.lbs 4.45 N·m244 kg 539 lbsQUOTE
ES5-6-1308U930 35/64 in 14 mm15/32 in 12 mm 25/64 in 10 mm4.24 ft.lbs 5.75 N?m244 kg 539 lbsQUOTE
ES5-6-1307U800 19/32 in 15 mm33/64 in 13 mm27/64 in 10.5 mm4.92 ft.lbs 6.67 N?m244 kg 539 lbsQUOTE
ES5-6-1306U70019/32 in 15 mm33/64 in 13 mm7/16 in 11 mm 5.63 ft.lbs 7.63 N·m244 kg 539 lbsQUOTE
ES5-6-1305U5905/8 in 16 mm35/64 in 14 mm15/32 in 12 mm6.68 ft.lbs 9.05 N?m244 kg 539 lbsQUOTE
ES5-6-1304U48043/64 in 17 mm19/32 in 15 mm33/64 in 13 mm8.21 ft.lbs 11.13 N?m244 kg 539 lbsQUOTE
