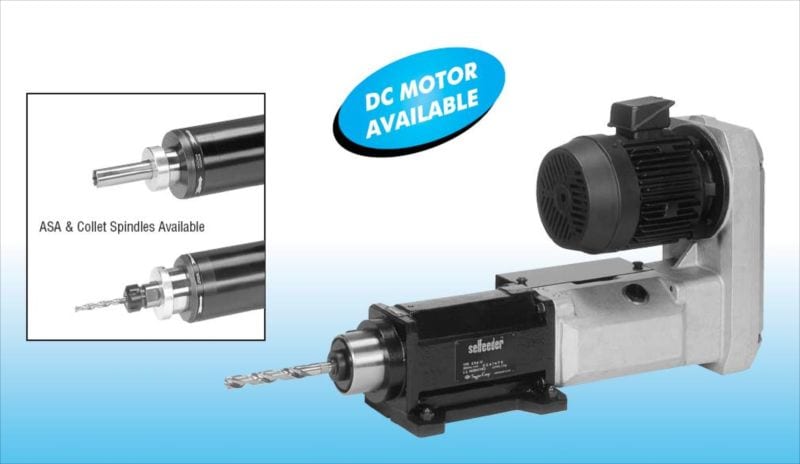

ES6-U Selfeeder - Hutchison Tool Sales

1.5, 2, or 3 HP spindle motors
450-4200 fixed rpm spindle speed range
Maximum drilling capacity in mild steel is 43/64 in.(17 mm)
Maximum drilling capacity in cast iron 3/4 in. (19 mm)
Maximum drilling capacity in aluminum 7/8 in.(22 mm)
Standard stroke of 5.91 in. (150 mm)
Standard MT2 type spindle with integral collet, ASA quick change, and special spindles avialable as options

SKU: N/A Categories: Selfeeder Component Drilling Units, Air/Electric Type to 7.5 HP (5.5 kW), Drilling and Tapping Machines For Automation

Model #	Spindle RPM (no load)	Aluminum Drill Size	Cast Iron Drill Size	Mild Steel Drill Size	Theoretical Spindle Torque	Thrust	List Price
ES6-2-2435U	4200	23/64 in 9 mm	1/8 in 3 mm	1/8 in 3 mm	3.75 ft.lbs 5.09 N·m	1160 lbs 526 kg	QUOTE
ES6-2-2425U	3000	7/16 in 11 mm	1/8 in 3 mm	1/8 in 3 mm	5.25 ft.lbs 7.12 N·m	1160 lbs 526 kg	QUOTE
ES6-2-2422U	2700	15/32 in 12 mm	5/32 in 4 mm	5/32 in 4 mm	5.83 ft.lbs 7.91 N·m	1160 lbs 526 kg	QUOTE
ES6-2-2417U	2100	19/32 in 15 mm	13/64 in 5 mm	13/64 in 5 mm	7.50 ft.lbs 10.17 N·m	1160 lbs 526 kg	QUOTE
ES6-2-2414U	1700	45/64 in 18 mm	1/4 in 6.5 mm	15/64 in 6 mm	9.27 ft.lbs 12.57 N·m	1160 lbs 526 kg	QUOTE
ES6-2-2411U	1300	25/32 in 20 mm	21/64 in 6.5 mm	1/4 in 8.5 mm	12.12 ft.lbs 16.43 N·m	1160 lbs 526 kg	QUOTE
ES6-4-2432U	3800	5/16 in 8 mm	3/32 in 2.5 mm	3/32 in 2.5 mm	2.76 ft.lbs 3.74 N·m	1160 lbs 526 kg	QUOTE
ES6-4-2425U	3000	25/64 in 10 mm	3/32 in 2.5 mm	9/64 in 3.5 mm	3.50 ft.lbs 4.75 N·m	1160 lbs 526 kg	QUOTE
ES6-4-2420U	2400	15/32 in 12 mm	11/64 in 4.5 mm	11/64 in 4.5 mm	4.38 ft.lbs 5.94 N·m	1160 lbs 526 kg	QUOTE
ES6-4-2417U	2100	19/32 in 15 mm	13/64 in 5 mm	13/64 in 5 mm	5.00 ft.lbs 6.78 N·m	1160 lbs 526 kg	QUOTE
ES6-4-2412U	1500	5/8 in 16 mm	9/32 in 7 mm	9/32 in 7 mm	7.00 ft.lbs 9.49 N·m	1160 lbs 526 kg	QUOTE
ES6-4-2411U	1300	5/8 in 16 mm	23/64 in 9 mm	5/16 in 8 mm	8.08 ft.lbs 10.96 N·m	1160 lbs 526 kg	QUOTE
ES6-4-2408U	1000	45/64 in 18 mm	7/16 in 11 mm	27/64 in 10.5 mm	10.50 ft.lbs 14.24 N·m	1160 lbs 526 kg	QUOTE
ES6-4-2407U	850	3/4 in 19 mm	35/64 in 14 mm	1/2 in 12.5 mm	12.36 ft.lbs 16.76 N·m	1160 lbs 526 kg	QUOTE
ES6-4-2406U	650	25/32 in 20 mm	5/8 in 16 mm	19/32 in 15 mm	16.16 ft.lbs 21.91 N·m	1160 lbs 526 kg	QUOTE
ES6-6-2426U	3100	25/64 in 10 mm	9/64 in 3.5 mm	9/64 in 3.5 mm	2.54 ft.lbs 3.44 N·m	1160 lbs 526 kg	QUOTE
ES6-6-2421U	2500	16/32 in 12 mm	11/64 in 4.5 mm	11/64 in 4.5 mm	3.15 ft.lbs 4.27 N·m	1160 lbs 526 kg	QUOTE
ES6-6-2417U	2000	33/64 in 13 mm	7/32 in 5.5 mm	7/32 in 5.5 mm	3.94 ft.lbs 5.34 N·m	1160 lbs 526 kg	QUOTE
ES6-6-2413U	1600	35/64 in 14 mm	9/32 in 7 mm	9/32 in 7 mm	4.92 ft.lbs 6.67 N·m	1160 lbs 526 kg	QUOTE
ES6-6-2412U	1400	19/32 in 15 mm	5/16 in 8 mm	5/18 in 8 mm	5.63 ft.lbs 7.63 N·m	1160 lbs 526 kg	QUOTE
ES6-6-2408U	1000	5/8 in 16 mm	7/16 in 11 mm	7/16 in 11 mm	7.88 ft.lbs 10.69 N·m	1160 lbs 526 kg	QUOTE
ES6-6-2407U	900	43/64 in 17 mm	1/2 in 12.5 mm	1/2 in 12.5 mm	8.75 ft.lbs 11.87 N·m	1160 lbs 526 kg	QUOTE
ES6-6-2406U	700	3/4 in 19 mm	5/8 in 16 mm	35/64 in 14 mm	11.25 ft.lbs 15.26 N·m	1160 lbs 526 kg	QUOTE
ES6-6-2405U	550	25/32 in 20 mm	43/64 in 17 mm	19/32 in 15 mm	14.32 ft.lbs 19.42 N·m	1160 lbs 526 kg	QUOTE
ES6-6-2404U	450	7/8 in 22 mm	3/4 in 19 mm	43/64 in 17 mm	17.51 ft.lbs 23.74 N·m	1160 lbs 526 kg	QUOTE
