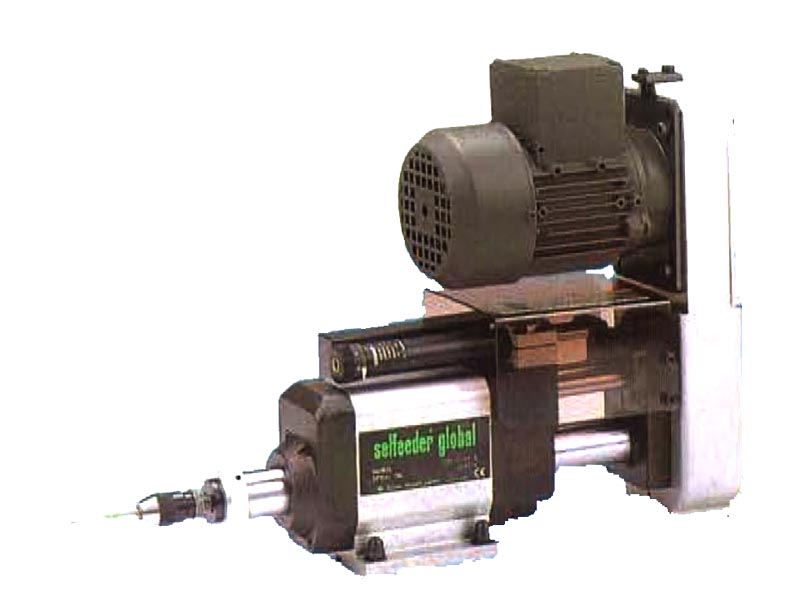

• 1/3 HP spindle motor
  • 1300-12,000 fixed rpm spindle speed range
  • Maximum drilling capacity in mild steel is 1/4 in. (6.5 mm)
  • Maximum drilling capacity in cast iron is 5/16 in. (8 mm)
  • Maximum drilling capacity in aluminum is 23/64 in. (9 mm)
  • Standard stroke of 3.15 in. (80 mm)
  • Standard JT1 type spindle for drill or collet chucks with integral collet and special spindles available as options
SKU: N/A Categories: , ,
Model # Spindle RPM (no load)Aluminum Drill SizeCast Iron Drill SizeMild Steel Drill SizeTheoretical Spindle TorqueThrust Standard StrokeList Price
GSA-2-3100U120007/64 in 2.5 mm3/64 in 1 mm3/64 in 1 mm0.15 ft.lbs 2.0 kg.cm256 lbs 116 kg3.15 in 80 mmQUOTE
GSA-2-3065U100001/8 in 3 mm3/64 in 1 mm3/64 in 1 mm0.17 ft.lbs 2.4 kg.cm 256 lbs 116 kg3.15 in 80 mmQUOTE
GSA-2-3060U7200 5/32 in 4 mm1/16 in 1.5 mm1/16 in 1.5 mm0.24 ft.lbs 3.4 kg.cm256 lbs 116 kg3.15 in 80 mmQUOTE
GSA-2-6045U54007/32 in 5.5 mm5/64 in 2 mm5/64 in 2 mm0.32 ft.lbs 4.5 kg.cm 256 lbs 116 kg3.15 in 80 mmQUOTE
GSA-2-6030U36001/4 in 6.5 mm1/8 in 3 mm 1/8 in 3 mm0.48 ft.lbs 6.8 kg.cm 256 lbs 116 kg3.15 in 80 mmQUOTE
GSA-2-6020U240019/64 in 7.5 mm11/64 in 4.5 mm11/64 in 4.5 mm0.72 ft.lbs 10.1 kg.cm256 lbs 116 kg3.15 in 80 mmQUOTE
GSA-2-6015U18005/16 in 8 mm15/64 in 4.5 mm15/64 in 4.5 mm0.96 ft.lbs 13.5 kg.cm256 lbs 116 kg3.15 in 80 mmQUOTE
GSA-2-6010U130023/64 in 9 mm5/16 in 8 mm1/4 in 6.5 mm1.33 ft.lbs 18.7 kg.cm256 lbs 116 kg3.15 in 80 mmQUOTE
