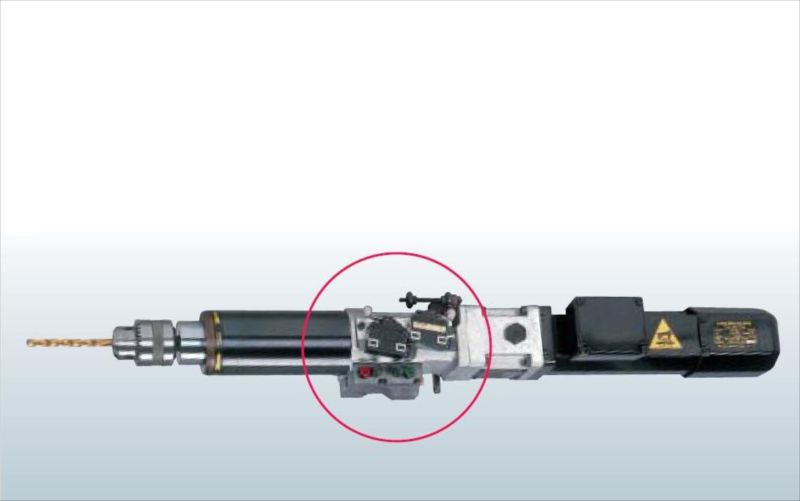

Sequence control by trip switch. The trip switch is a means of supplying an electrical signal to trigger operation of other associated machines. The trip switch unit is a standard attachment, but optional. It is a simple matter to make a converter circuit in which the electrical signal will trigger a pneumatic operation.

Categories: ,
Model #Applicable Selfeeder ModelStroke RangeFunctionList Price
OSK-80B-FMSFB80NPN proximity sensors (current sinking) for return and max drill depth positionsQUOTE
OSK-80B-EMSFB80NPN proximity sensors (current sinking) for return and max drill depth positionsQUOTE
OSK-80B-EP SFB 80NPN proximity sensors (current sinking) return position onlyQUOTE
OSK-80B-RM SFB80micro-switches for return and max drill depth positions QUOTE
OSK-80B-RPSFB80pneumatic signal for any point on reverse motion QUOTE
OSK-80B-WMSFB 80micro-switch for any point on reverse motion QUOTE
OSK-80G-WXGSA80NPN proximity sensors (current sinking) for return and max drill depth positionsQUOTE
OSK-80-EXES2 ES3C-L ES3PL80micro-switches for return and max drill depth positions QUOTE
OSK-80-WXES2 ES3C-L ES3PL80pneumatic signal for any point on reverse motionQUOTE
OSK-100C-FM SFC100pneumatic signal for return position only QUOTE
OSK-100C-EM SFC100micro-switch for return position signal only QUOTE
OSK-100C-EP SFC100micro-switch for max drill depth signal onlyQUOTE
OSK-100C-RM SFC100NPN proximity sensors (current sinking) for return and max drill depth positionsQUOTE
OSK-100C-RPSFC100NPN proximity sensors (current sinking) for return and max drill depth positionsQUOTE
OSK-100C-WM SFC100NPN proximity sensors (current sinking) for return and max drill depth positionsQUOTE
OSK-100-EXES5 100micro-switch for return position signal onlyQUOTE
OSK-100G-WXGSB100NPN proximity sensors (current sinking) for return and max drill depth positionsQUOTE
OSK-100GC-WXGSC100NPN proximity sensors (current sinking) for return and max drill depth positionsQUOTE
OSK-100-WX ES5100micro-switch for max drill depth signal only QUOTE
OSK-100G-WX GSC-L 100NPN proximity sensors (current sinking) for return and max drill depth positionsQUOTE
OSK-150G-WX GSB-L150NPN proximity sensors (current sinking) return position only QUOTE
OSK-150-EX ES3PLL150micro-switch for any point on reverse motion QUOTE
OSK-150-WXES3PLL 150pneumatic signal for return position only QUOTE
OSK-150N6-WXES6150NPN proximity sensors (current sinking) for return and max drill depth positionsQUOTE
OSK-200N6-WXES7200NPN proximity sensors (current sinking) return position onlyQUOTE
