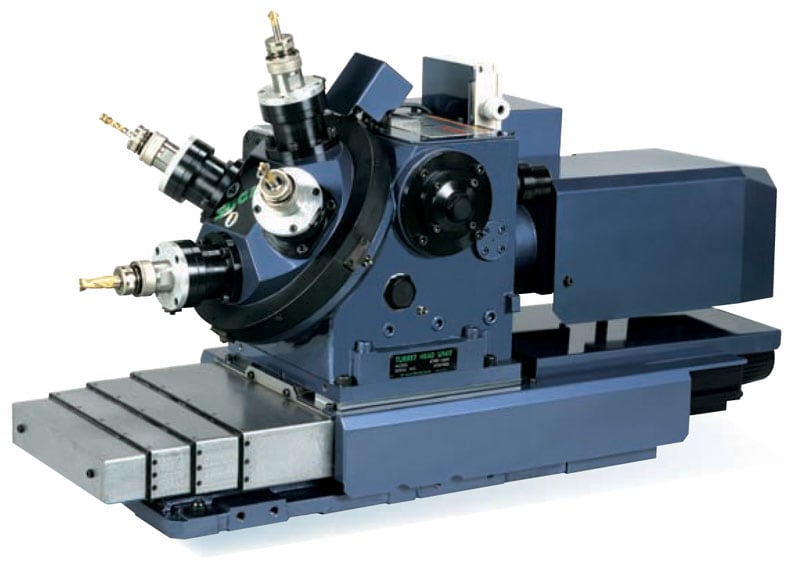

Designed to integrate onto space-saving and high-efficient production machines, the versatile it can combine plural kinds of process like facing, drilling, chamfering, tapping and other kinds of processing.

Model #Spindle Speed (no load)Chuck Type Chucking CapacityAluminum Max. Drilling/Tapping Size (ADC)Cast Iron Max. Drilling/Tapping Size (FC200)Steel Max. Drilling/Tapping Size (S45C)List Price
4TH5-1660Max. 6000 min-1Stub Holder (KH-25E NT tool)3.6 ~ 16.0 mm14 mm M1011 mm M89.5 mm M8 QUOTE
4TH5-1612Max. 1200 min-1Stub Holder (KH-25E NT tool)3.6 ~ 16.0 mm20 mm M1615 mm M1213 mm M12QUOTE
