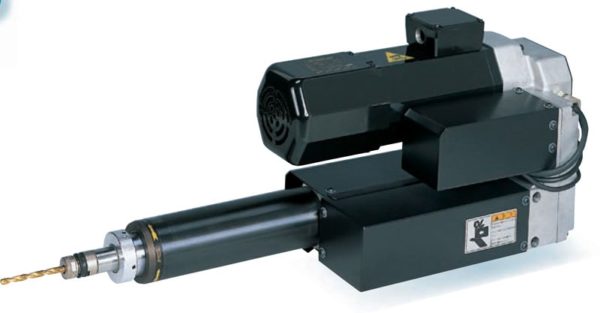

Most suitable unit for doing small diameter/deep hole drilling or high-precision drilling with carbide tooling. Easy unit replacement on operations originally utilizing Selfeeder “Electric” types because it uses the same “circular body style”.

Model # Spindle Speed (no load) 50HzSpindle Speed (no load) 60HzChuck TypeAluminum Max. Drilling Size (ADC)Cast Iron Max. Drilling Size (FC200)Steel Max. Drilling Size (S45C)List Price
MS3P-3075LLZ7500 min -1 9000 min -1 ER11 3 mm1.5 mm1.5 mmQUOTE
MS3P-3060LLZ6000 min -17200 min -1 ER114 mm1.5 mm 1.5 mm QUOTE
MS3P-6049LLZ4900 min -15900 min -1ER115 mm2 mm2 mmQUOTE
MS3P-6034LLZ3400 min -14100 min -1ER117 mm3 mm3 mm QUOTE
MS3P-1326LLZ2600 min -13200 min -1ER207.5 mm3.5 mm3.5 mm QUOTE
MS3P-1318LLZ1800 min -12200 min -1 ER208.5 mm5 mm4 mmQUOTE
MS3P-1314LLZ1400 min -11700 min -1ER209.5 mm6 mm6 mmQUOTE
MS3P-1310LLZ1000 min -11200 min -1 ER2010 mm8 mm7 mmQUOTE
MS3P-1307LLZ700 min -1800 min -1ER20 12 mm9 mm8 mm QUOTE
MS3P-1306LLZ600 min -1700 min -1 ER2013.5 mm 10.5 mm9 mmQUOTE
MS3P-1305LLZ500 min -1 600 min -1 ER2014 mm12 mm10 mmQUOTE
