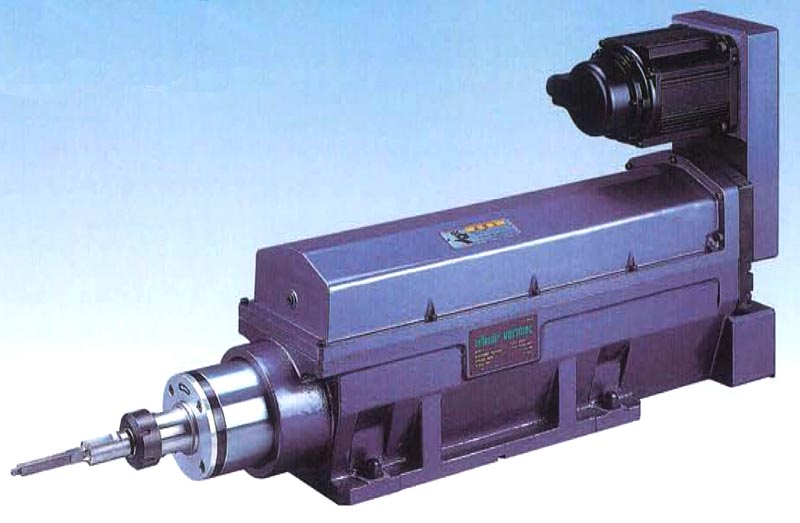

The Varimec SSV4 drill unit has a 9.84″ stroke length and with it’s very rigid design, it is ideally suited for a wide-range of holemaking applications in a wide variety of materials including titanium, exotic and high-nickel alloys as well as aluminum, plastics and composite materials.

Model #Spindle Speed (no load)Chucking CapacityAluminum Drill Size (ADC)Cast Iron Drill Size (FC200)Thrust Thrust (N)List Price
SSV4-2070-11000 ~ 7000 0.79 ~ 0.787 in 2.0 ~ 20.0 mm0.79 ~ 0.354 in 2 ~ 9 mm0.79 ~ 0.315 in 2 ~ 8 mm10344600QUOTE
SSV4-2070-2250 ~ 17500.79 ~ 0.787 in 2.0 ~ 20.0 mm0.79 ~ 0.630 in 2 ~ 16 mm0.79 ~ 0.591 in 2 ~ 15 mm10344600 QUOTE
