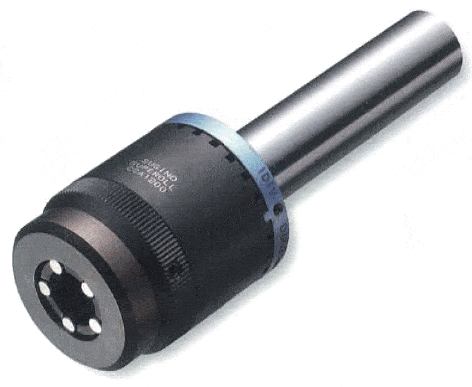

The CSA series Superoll will adapt to most CNC lathes. Various processing lengths are obtainable without the use of a special tool.

Categories: , ,

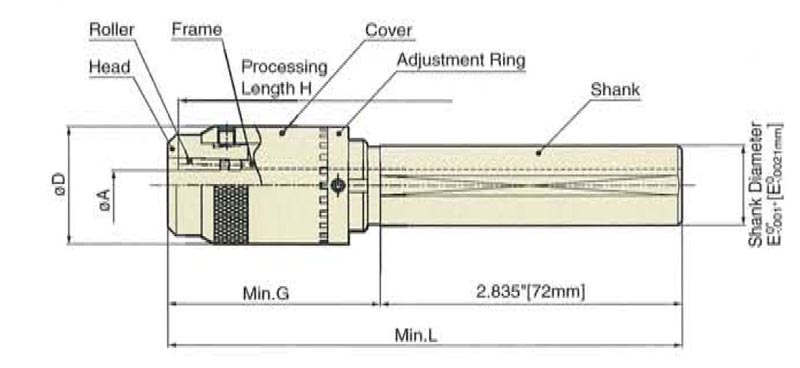

Model #Diameter - A (Adjustment)Tool Diameter - D Shank Diameter - ETool Length - GList Price
CSA300-A0.120 ~ 0.113 inches (3.05 ~ 2.85 mm)1.102 inches (28 mm)0.75 inches (19.05 mm)1.890 inches (48 mm)QUOTE
CSA350-A0.139 ~ 0.132 inches (3.55 ~ 3.35 mm)1.102 inches (28 mm)0.75 inches (19.05 mm)1.890 inches (48 mm)QUOTE
CSA400-A0.159 ~ 0.152 inches (4.05 ~ 3.85 mm)1.102 inches (28 mm)0.75 inches (19.05 mm)1.890 inches (48 mm)QUOTE
CSA450-A0.179 ~ 0.172 inches (4.55 ~ 4.35 mm)1.102 inches (28 mm)0.75 inches (19.05 mm)1.890 inches (48 mm)QUOTE
CSA500-A0.198 ~ 0.191 inches (5.05 ~ 4.85 mm)1.102 inches (28 mm)0.75 inches (19.05 mm)1.890 inches (48 mm)QUOTE
CSA550-A0.218 ~ 0.211 inches (5.55 ~ 5.35 mm)1.102 inches (28 mm)0.75 inches (19.05 mm)1.890 inches (48 mm)QUOTE
CSA600-A0.238 ~ 0.231 inches (6.05 ~ 5.85 mm)1.102 inches (28 mm)0.75 inches (19.05 mm)1.890 inches (48 mm)QUOTE
CSA650-A0.257 ~ 0.250 inches (6.55 ~ 6.35 mm)1.102 inches (28 mm)0.75 inches (19.05 mm)1.890 inches (48 mm)QUOTE
CSA700-A0.277 ~ 0.270 inches (7.05 ~ 6.85 mm)1.102 inches (28 mm)0.75 inches (19.05 mm)1.890 inches (48 mm)QUOTE
CSA750-A0.297 ~ 0.290 inches (7.55 ~ 7.35 mm)1.496 inches (38 mm)0.75 inches (19.05 mm)1.890 inches (48 mm)QUOTE
CSA800-A0.316 ~ 0.310 inches (8.05 ~ 7.85 mm)1.496 inches (38 mm)0.75 inches (19.05 mm)1.890 inches (48 mm)QUOTE
CSA850-A0.336 ~ 0.329 inches (8.55 ~ 8.35 mm)1.496 inches (38 mm)0.75 inches (19.05 mm)1.890 inches (48 mm)QUOTE
CSA900-A0.356 ~ 0.349 inches (9.05 ~ 8.85 mm)1.496 inches (38 mm)0.75 inches (19.05 mm)1.890 inches (48 mm)QUOTE
CSA950-A0.375 ~ 0.369 inches (9.55 ~ 9.35 mm)1.496 inches (38 mm)0.75 inches (19.05 mm)1.890 inches (48 mm)QUOTE
CSA1000-A0.395 ~ 0.388 inches (10.05 ~ 9.85 mm)1.496 inches (38 mm)0.75 inches (19.05 mm)1.890 inches (48 mm)QUOTE
CSA1050-A0.415 ~ 0.408 inches (10.55 ~ 10.35 mm)1.496 inches (38 mm)0.75 inches (19.05 mm)1.890 inches (48 mm)QUOTE
CSA1100-A0.435 ~ 0.428 inches (11.05 ~ 10.85 mm)1.496 inches (38 mm)0.75 inches (19.05 mm)1.890 inches (48 mm)QUOTE
CSA1150-D0.454 ~ 0.447 inches (11.55 ~ 11.35 mm)1.614 inches (41 mm)1 inches (25.4 mm)2.087 inches (53 mm)QUOTE
CSA1200-D 0.474 ~ 0.467 inches (12.05 ~ 11.85 mm) 1.614 inches (41 mm)1 inches (25.4 mm)2.087 inches (53 mm)QUOTE
CSA1250-D0.494 ~ 0.487 inches (12.55 ~ 12.35 mm)1.614 inches (41 mm)1 inches (25.4 mm)2.087 inches (53 mm)QUOTE
CSA1300-D0.513 ~ 0.506 inches (13.05 ~ 12.85 mm)1.614 inches (41 mm)1 inches (25.4 mm)2.087 inches (53 mm)QUOTE
CSA1350-D0.533 ~ 0.526 inches (13.55 ~ 13.35 mm)1.614 inches (41 mm)1 inches (25.4 mm)2.087 inches (53 mm)QUOTE
CSA1400-D0.553 ~ 0.546 inches (14.05 ~ 13.85 mm)1.614 inches (41 mm)1 inches (25.4 mm)2.087 inches (53 mm)QUOTE
CSA300-B0.120 ~ 0.113 inches (3.05 ~ 2.85 mm)1.102 inches (28 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA350-B0.139 ~ 0.132 inches (3.55 ~ 3.35 mm)1.102 inches (28 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA400-B0.159 ~ 0.152 inches (4.05 ~ 3.85 mm)1.102 inches (28 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA450-B0.179 ~ 0.172 inches (4.55 ~ 4.35 mm)1.102 inches (28 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA500-B0.198 ~ 0.191 inches (5.05 ~ 4.85 mm)1.102 inches (28 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA550-B0.218 ~ 0.211 inches (5.55 ~ 5.35 mm)1.102 inches (28 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA600-B0.238 ~ 0.231 inches (6.05 ~ 5.85 mm)1.102 inches (28 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA650-B0.257 ~ 0.250 inches (6.55 ~ 6.35 mm)1.102 inches (28 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA700-B0.277 ~ 0.270 inches (7.05 ~ 6.85 mm)1.102 inches (28 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA750-B0.297 ~ 0.290 inches (7.55 ~ 7.35 mm)1.496 inches (38 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA800-B0.316 ~ 0.310 inches (8.05 ~ 7.85 mm)1.496 inches (38 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA850-B0.336 ~ 0.329 inches (8.55 ~ 8.35 mm)1.496 inches (38 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA900-B0.356 ~ 0.349 inches (9.05 ~ 8.85 mm)1.496 inches (38 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA950-B0.375 ~ 0.369 inches (9.55 ~ 9.35 mm)1.496 inches (38 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA1000-B0.395 ~ 0.388 inches (10.05 ~ 9.85 mm)1.496 inches (38 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA1050-B0.415 ~ 0.408 inches (10.55 ~ 10.35 mm)1.496 inches (38 mm)0.787 inches (20 mm)1.890 inches (48 mm) QUOTE
CSA1100-B0.435 ~ 0.428 inches (11.05 ~ 10.85 mm)1.496 inches (38 mm)0.787 inches (20 mm)1.890 inches (48 mm) QUOTE
CSA1150-C 0.454 ~ 0.447 inches (11.55 ~ 11.35 mm)1.614 inches (41 mm) 0.984 inches (25 mm)2.087 inches (53 mm)QUOTE
CSA1200-C 0.474 ~ 0.467 inches (12.05 ~ 11.85 mm)1.614 inches (41 mm) 0.984 inches (25 mm)2.087 inches (53 mm)QUOTE
CSA1250-C 0.494 ~ 0.487 inches (12.55 ~ 12.35 mm)1.614 inches (41 mm) 0.984 inches (25 mm)2.087 inches (53 mm)QUOTE
CSA1300-C0.513 ~ 0.506 inches (13.05 ~ 12.85 mm)1.614 inches (41 mm) 0.984 inches (25 mm)2.087 inches (53 mm)QUOTE
CSA1350-C0.533 ~ 0.526 inches (13.55 ~ 13.35 mm)1.614 inches (41 mm) 0.984 inches (25 mm)2.087 inches (53 mm)QUOTE
CSA1400-C 0.553 ~ 0.546 inches (14.05 ~ 13.85 mm)1.614 inches (41 mm) 0.984 inches (25 mm)2.087 inches (53 mm)QUOTE
CSA300-F0.120 ~ 0.113 inches (3.05 ~ 2.85 mm)1.102 inches (28 mm) 0.866 inches (22 mm) 1.890 inches (48 mm)QUOTE
CSA350-F0.139 ~ 0.132 inches (3.55 ~ 3.35 mm) 1.102 inches (28 mm) 0.866 inches (22 mm) 1.890 inches (48 mm)QUOTE
CSA400-F0.159 ~ 0.152 inches (4.05 ~ 3.85 mm)1.102 inches (28 mm) 0.866 inches (22 mm) 1.890 inches (48 mm)QUOTE
CSA450-F0.179 ~ 0.172 inches (4.55 ~ 4.35 mm)1.102 inches (28 mm) 0.866 inches (22 mm) 1.890 inches (48 mm)QUOTE
CSA500-F0.159 ~ 0.152 inches (4.05 ~ 3.85 mm)1.102 inches (28 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA550-F0.179 ~ 0.172 inches (4.55 ~ 4.35 mm)1.102 inches (28 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA600-F0.198 ~ 0.191 inches (5.05 ~ 4.85 mm)1.102 inches (28 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA650-F0.218 ~ 0.211 inches (5.55 ~ 5.35 mm)1.102 inches (28 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA700-F0.238 ~ 0.231 inches (6.05 ~ 5.85 mm)1.102 inches (28 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA750-F0.257 ~ 0.250 inches (6.55 ~ 6.35 mm)1.102 inches (28 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA800-F0.277 ~ 0.270 inches (7.05 ~ 6.85 mm)1.102 inches (28 mm)0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA850-F0.297 ~ 0.290 inches (7.55 ~ 7.35 mm)1.496 inches (38 mm) 0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA900-F0.316 ~ 0.310 inches (8.05 ~ 7.85 mm)1.496 inches (38 mm) 0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA950-F0.336 ~ 0.329 inches (8.55 ~ 8.35 mm)1.496 inches (38 mm) 0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA1000-F0.356 ~ 0.349 inches (9.05 ~ 8.85 mm)1.496 inches (38 mm) 0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA1050-F0.375 ~ 0.369 inches (9.55 ~ 9.35 mm)1.496 inches (38 mm) 0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
CSA1100-F0.395 ~ 0.388 inches (10.05 ~ 9.85 mm) 1.496 inches (38 mm) 0.787 inches (20 mm)1.890 inches (48 mm)QUOTE
