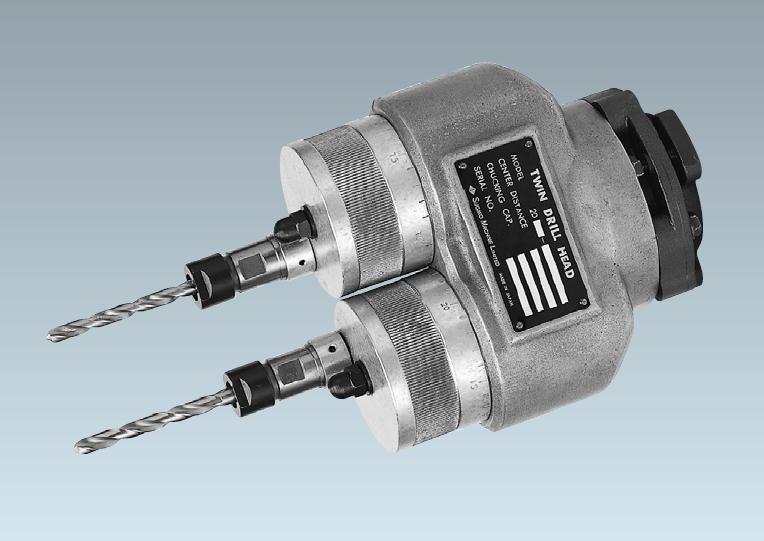

Home / Drilling and Tapping Machines For Automation / Drill Head Collet Chuck Style (Adjustable Spindle)
Categories: Drill Head, Drilling and Tapping Machines For Automation, Multi-Spindle Drilling and Tapping Heads Model #Spindle Center Distance (min. ∼ max.)Chucking CapacityChuck TypeDLList Price 2D21-570APV0.67 ~ 3.31 inches (17 ~ 84 mm)3/64 ~ 17/64 inches (1.1 ~ 7 mm)Collet Chuck4.37 inches (111 mm)7.52 inches (191 mm)QUOTE2D41-570APV0.67 ~ 3.31 inches (17 ~ 84 mm)3/64 ~ 17/64 inches (1.1 ~ 7 mm)Collet Chuck4.37 inches (111 mm)7.56 inches (192 mm)QUOTE2D43-570APV0.67 ~ 3.31 inches (17 ~ 84 mm)3/64 ~ 17/64 inches (1.1 ~ 7 mm)Collet Chuck4.37 inches (111 mm)8.19 inches (208 mm)QUOTE2D41-5100APV0.91 ~ 4.49 inches (23 ~ 114 mm)3/64 ~ 25/64 inches (1.1 ~ 10 mm)Collet Chuck5.87 inches (149 mm)7.95 inches (202 mm)QUOTE2D43-5100APV0.91 ~ 4.49 inches (23 ~ 114 mm)3/64 ~ 25/64 inches (1.1 ~ 10 mm)Collet Chuck5.87 inches (149 mm)7.95 inches (202 mm)QUOTE2D53-10130APV1.44 ~ 5.63 inches (36.5 ~ 143 mm)3/64 ~ 1/2 inches (1.1 ~ 13 mm)Collet Chuck7.48 inches (190 mm)10.40 inches (264 mm)QUOTE2D63-10130APV1.79 ~ 6.69 inches (45.5 ~ 170 mm)3/64 ~ 1/2 inches (1.1 ~ 13 mm)Collet Chuck8.90 inches (226 mm)10.99 inches (279 mm)QUOTE
