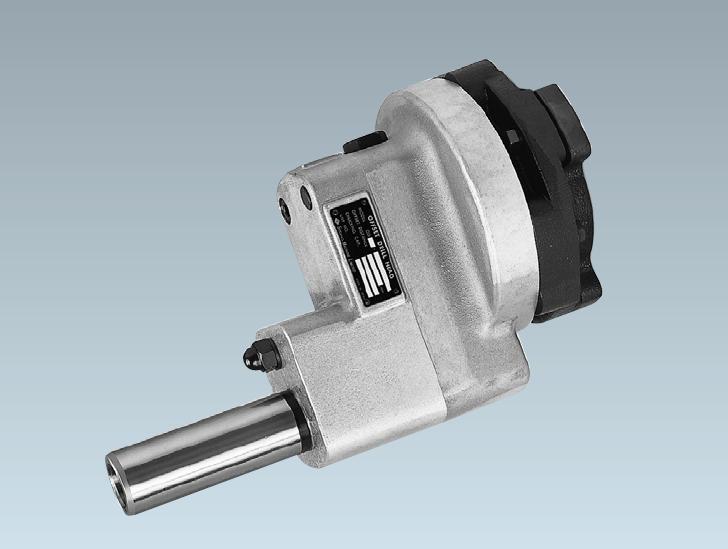

Drill heads which avoid interference with drill units jig fixtures or work pieces. All multiple spindle heads have a gear ratio of 1:1.

Categories: , ,
Offset Pitch Spindle Nose Machining Specification Depth Coolant Working Direction of Spindle Type of Spindle Type of Multi Spindle Head Requested Drilling and Tapping Unit
3.0709 inches (78 mm) Adjustable Adapter 3/4 - 12 Drilling Reaming Tapping Blind Through Dry Oil Base Water Base Horizontal Stand Down Stand Up Vertical Down Vertical Up ASA Collet Catch Clip Type Fixed Spindle Type Selfeeder Synchotapper
