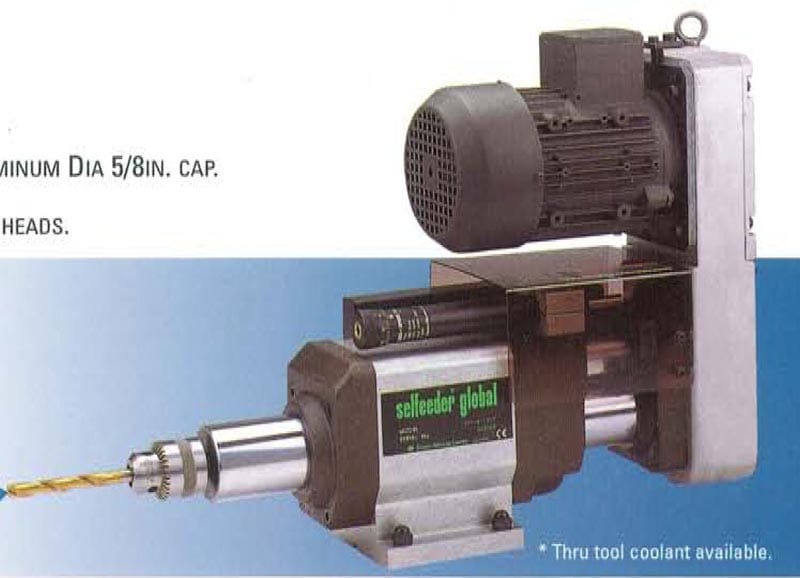

• 1 or 1.5 HP spindle motors
  • 900-7300 fixed rpm spindle speed range
  • Maximum drilling capacity in steel is 29/64 in.(11.5 mm)
  • Maximum drilling capacity in cast iron 15/32 in.(12 mm)
  • Maximum drilling capacity in aluminum 5/8 in. (16 mm)
  • Standard stroke of 3.94 in. (100 mm) with 7.87 in. (200 mm) optional
  • Thru-the-tool coolant is available as an option
  • Standard JT33 type spindle for drill or collet chucks with integral collet, ASA and KH quick change, and special spindles available as options
SKU: N/A Categories: , ,
Model #Spindle RPM (no load)Aluminum Drill SizeCast Iron Drill SizeMild Steel Drill SizeTheoretical Spindle TorqueThrustList Price
GSC-2-1361(L)U73005/32 in 4 mm1/16 in 1.5 mm1/16 in 1.5 mm1.05 ft.lbs 14.7 N·m720 lbs 327 kgQUOTE
GSC-2-1342(L)U500015/64 in 6 mm5/64 in 2 mm5/64 in 2 mm1.54 ft.lbs 2.09 N·m720 lbs 327 kgQUOTE
GSC-2-1330(L)U3600 11/32 in 8.5 mm1/8 in 3 mm1/8 in 3 mm2.14 ft.lbs 2.90 N·m 720 lbs 327 kgQUOTE
GSC-2-1321(L)U260015/32 in 8 mm11/14 in 4.5 mm11/14 in 4.5 mm2.96 ft.lbs 4.01 N·m720 lbs 327 kgQUOTE
GSC-2-1315(L)U1800 9/16 in 14 mm15/64 in 6 mm15/64 in 6 mm4.28 ft.lbs 5.80 N·m720 lbs 327 kgQUOTE
GSC-4-1330(L)U360011/32 in 8.5 mm1/8 in 3 mm1/8 in 3 mm1.46 ft.lbs 1.98 N·m720 lbs 327 kgQUOTE
GSC-4-1321(L)U250027/64 in 10.5 mm11/64 in 4.5 mm11/54 in 4.5 mm2.10 ft.lbs 2.85 N·m720 lbs 327 kgQUOTE
GSC-4-1315(L)U1800 1/2 in 12.5 mm 15/61 in 6 mm15/64 in 6 mm2.92 ft.lbs 3.96 N·m720 lbs 327 kgQUOTE
GSM-4-1311(L)U13009/16 in 14 mmv 11/32 in 8.5 mm 11/32 in 8.5 mm4.04 ft.lbs 5.48 N·m720 lbs 327 kgQUOTE
GSC-4-1307(L)U9005/8 in 16 mm15/32 in 12 mm29/64 in 11.5 mm 5.83 ft.lbs 7.91 N·m720 lbs 327 kgQUOTE
