Showing all 10 results
-

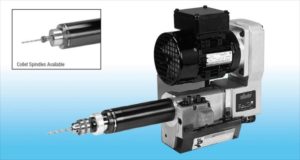

ES2-U Selfeeder
- 1/3 HP spindle motor
- 1700-12,000 fixed rpm spindle speed range
- Maximum drilling capacity in mild steel is 7/32 in. (5.5 mm)
- Maximum drilling capacity in cast iron is 1/4 in. (6.5 mm)
- Maximum drilling capacity in aluminum is 5/16 in. (9 mm)
- Standard stroke of 3.15 in. (80 mm)
- Standard JT1 type spindle for drill or collet chucks with integral collet and special spindles available as options
-

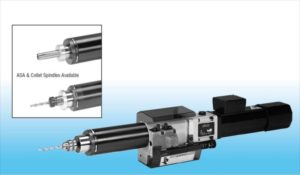

ES3C-LU Selfeeder
- 1/4 HP in-line spindle motor for clearance driven applications
- 650-3600 fixed rpm spindle speed range
- Maximum drilling capacity in mild steel is 5/16 in.(8 mm)
- Maximum drilling capacity in cast iron 11/32 in. (8.5 mm)
- Maximum drilling capacity in aluminum 7/16 in.(11 mm)
- Standard stroke of 3.15 in. (80 mm)
- Standard JT33 and JT1 type spindles for drill or collet chucks with integral collet, ASA and KH quick change, and special spindles available as options
-

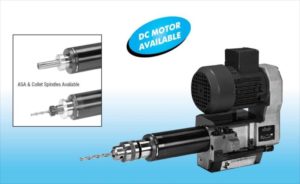

ES3P-LU Selfeeder
- 1/2 or 3/4 HP spindle motors
- 900-9000 fixed rpm spindle speed range
- Maximum drilling capacity in mild steel is 11/32 in.(8.5 mm)
- Maximum drilling capacity in cast iron 25/64 in. (10 mm)
- Maximum drilling capacity in aluminum 1/2 in.(12.5 mm)
- Standard stroke of 3.15 in. (80 mm) (L type) with 5.91 in. (150 mm) (LL type) optional
- Standard JT33 and JT1 type spindles for drill or collet chucks with integral collet, ASA and KH quick change, and special spindles available as options
-

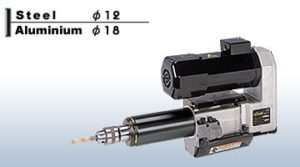

ES4P-LU Selfeeder
- Higher powered 0.55kW and 0.75kW motors are employed.
- Attach a multiple spindle head to provide additional performance and productivity
-

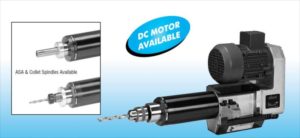

ES5-U Selfeeder
- 3/4, 1, or 1.5 HP spindle motors
- 480-7300 fixed rpm spindle speed range
- Maximum drilling capacity in steel is 33/64 in.(13 mm)
- Maximum drilling capacity in cast iron 19/32 in.(15 mm)
- Maximum drilling capacity in aluminum 43/64 in. (17 mm)
- Standard stroke of 3.94 in. (100 mm)
- Standard JT33 type spindle for drill or collet chucks with integral collet, ASA and KH quick change, and special spindles available as options
-

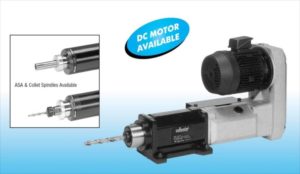

ES6-U Selfeeder
- 1.5, 2, or 3 HP spindle motors
- 450-4200 fixed rpm spindle speed range
- Maximum drilling capacity in mild steel is 43/64 in.(17 mm)
- Maximum drilling capacity in cast iron 3/4 in. (19 mm)
- Maximum drilling capacity in aluminum 7/8 in.(22 mm)
- Standard stroke of 5.91 in. (150 mm)
- Standard MT2 type spindle with integral collet, ASA quick change, and special spindles avialable as options
-

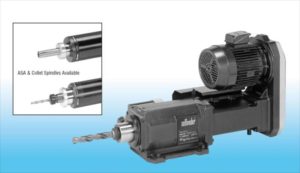

ES7-U Selfeeder
- 3, 5, or 7.5 HP spindle motors
- 410-3500 fixed rpm spindle speed range
- Maximum drilling capacity in mild steel is 1-7/64 in.(28 mm)
- Maximum drilling capacity in cast iron 1-1/4 in. (32 mm)
- Maximum drilling capacity in aluminum 1-37/64 in.(40 mm)
- Standard stroke of 7.87 in. (200 mm)
- Standard MT2 or MT3 type spindles with integral collet, ASA quick change, and special spindles avialable as options
-

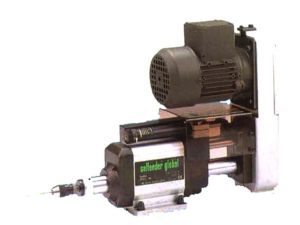

GSA Selfeeder
- 1/3 HP spindle motor
- 1300-12,000 fixed rpm spindle speed range
- Maximum drilling capacity in mild steel is 1/4 in. (6.5 mm)
- Maximum drilling capacity in cast iron is 5/16 in. (8 mm)
- Maximum drilling capacity in aluminum is 23/64 in. (9 mm)
- Standard stroke of 3.15 in. (80 mm)
- Standard JT1 type spindle for drill or collet chucks with integral collet and special spindles available as options
-

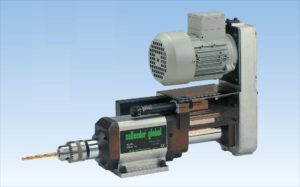

GSB Selfeeder
- 1/2 or 3/4 HP spindle motors
- 700-9000 fixed rpm spindle speed range
- Maximum drilling capacity in mild steel is 3/8 in.(9.5 mm)
- Maximum drilling capacity in cast iron 7/16 in. (11 mm)
- Maximum drilling capacity in aluminum 33/64 in.(13 mm)
- Standard stroke of 3.94 in. (100 mm) with 5.91 in. (150 mm) optional
- Thru-the-tool coolant is available as an option
- Standard JT33 and JT1 type spindles for drill or collet chucks with integral collet, ASA and KH quick change, and special spindles available as options
-

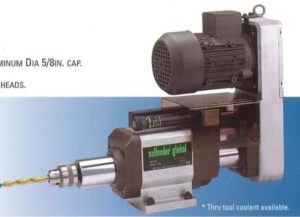

GSC Selfeeder
- 1 or 1.5 HP spindle motors
- 900-7300 fixed rpm spindle speed range
- Maximum drilling capacity in steel is 29/64 in.(11.5 mm)
- Maximum drilling capacity in cast iron 15/32 in.(12 mm)
- Maximum drilling capacity in aluminum 5/8 in. (16 mm)
- Standard stroke of 3.94 in. (100 mm) with 7.87 in. (200 mm) optional
- Thru-the-tool coolant is available as an option
- Standard JT33 type spindle for drill or collet chucks with integral collet, ASA and KH quick change, and special spindles available as options
