• Powerful 3HP (2.2 kw) motor allows tapping of R3/4 (aluminum).
  • Forward and reverse rotation controlled by frequency controller. Using a frequency controller allows a reduction of impact as the unit changes from forward rotation to reverse rotation. An electronic thermal relay is included for overload protection.
  • A second reference point allows for greatly reduced cycle time.
  • Sugino’s multi-spindle tapper head promises highly efficient tapping. Increased power of the motor has expanded


Circuit Diagram

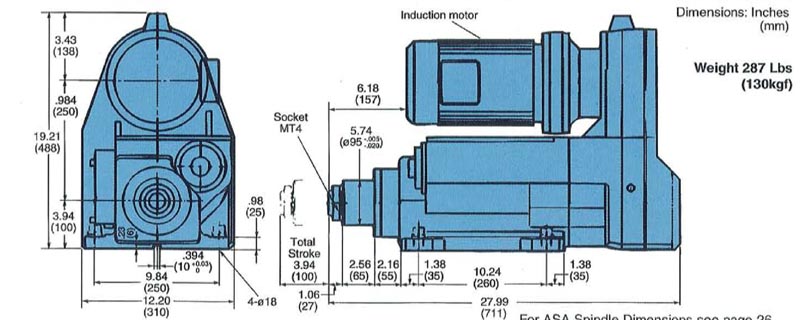

Model #Motor Type Spindle Type Total Stroke Pitch Feed Stroke Minimum Cycle Time (sec.) Tapping Capacity
STE-522Induction Motor 1 3/8-12 ASA Standard MT-4 0.79 ~ 3.94 in 20 ~ 100 mm 0.79 ~ 3.94 in 20 ~ 100 mm 8 Aluminium M45 Steel M30
